AI Sorting Systems for Global Recycling Projects
WEI LAN provides modular optical sorting centers and integrated construction waste recycling lines for plastic recyclables, C&D waste, bulky waste, and smart city environmental infrastructure.
Product Lines
Designed for operators who need compact layouts, faster deployment, reliable long-running production, and digital visibility across the complete sorting process.

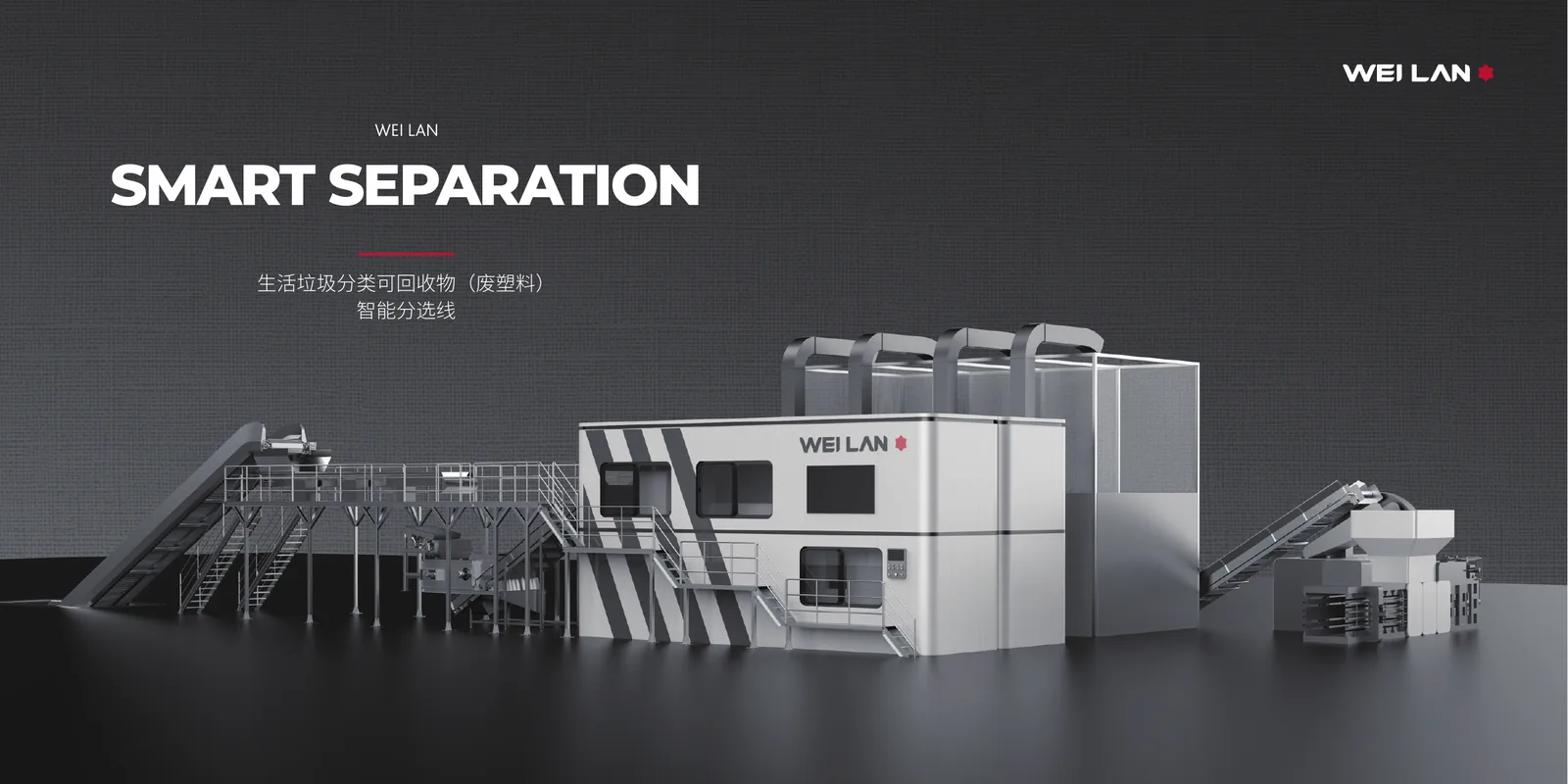

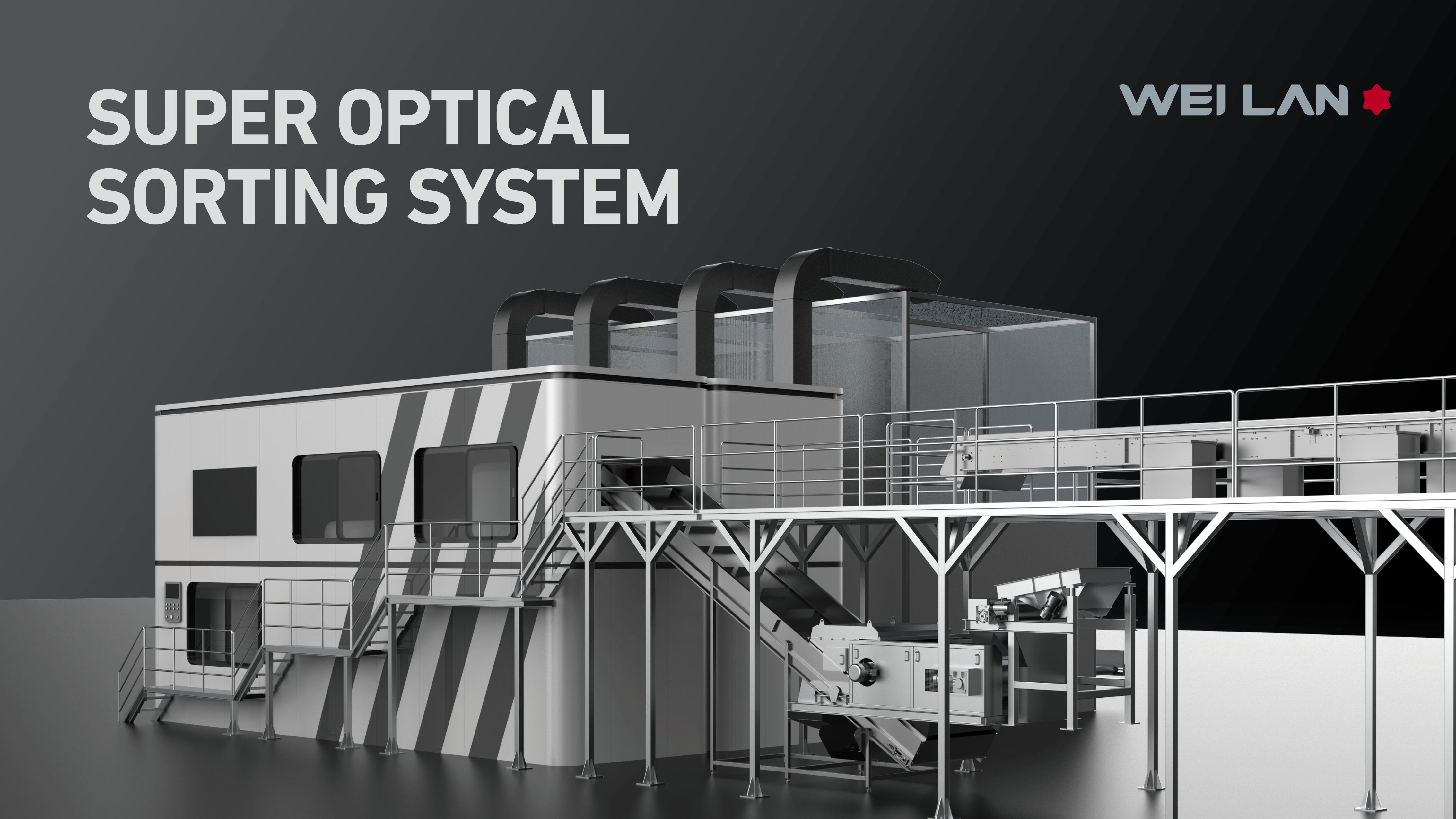

Super Optical Sorting System
Modular sorting modules identify and separate PET bottles, HDPE bottles, PP, and mixed plastics by material and color. The system supports cyclic sorting with intelligent bins and a digital control cabin.

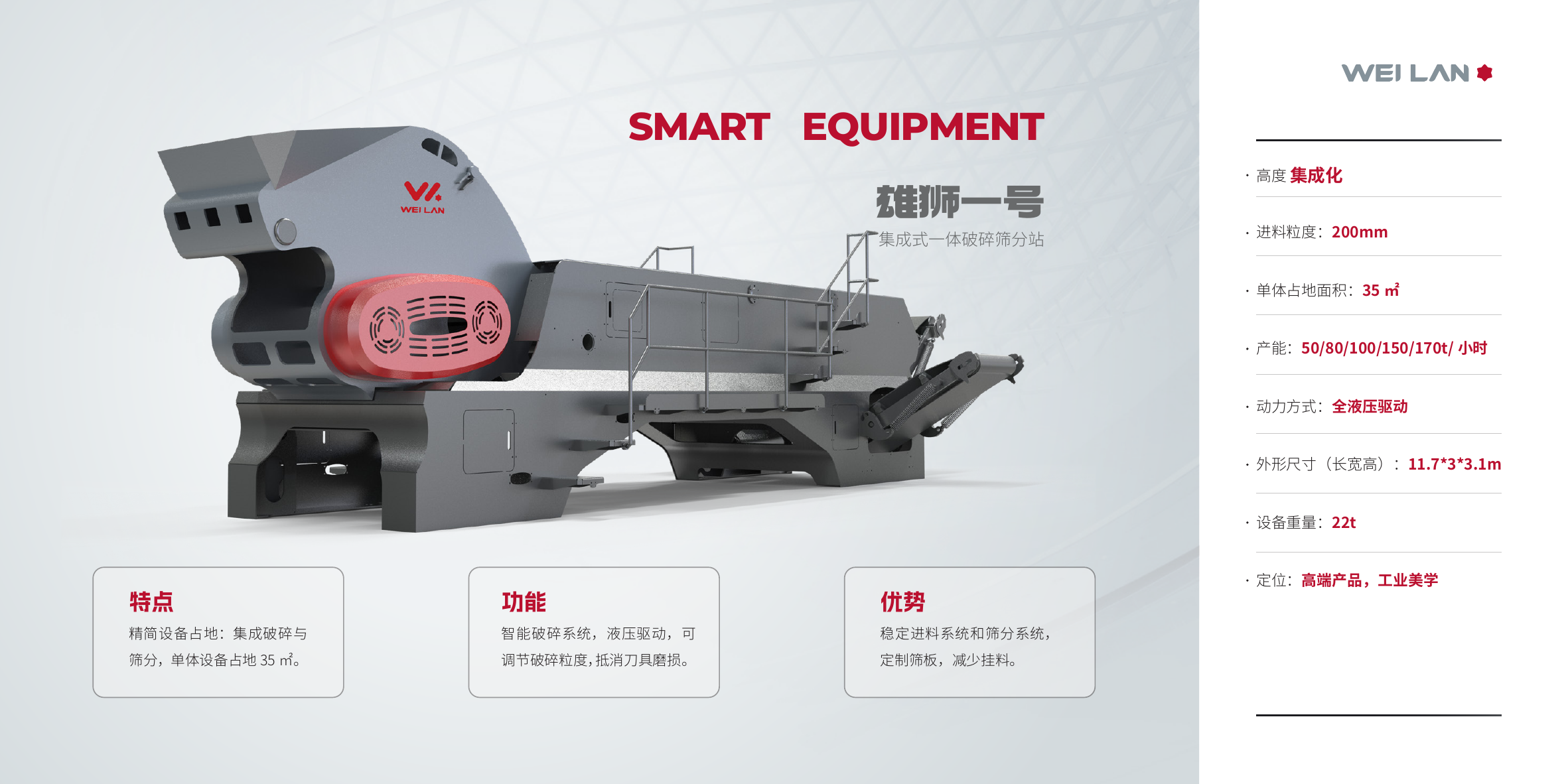

Construction and Bulky Waste Line

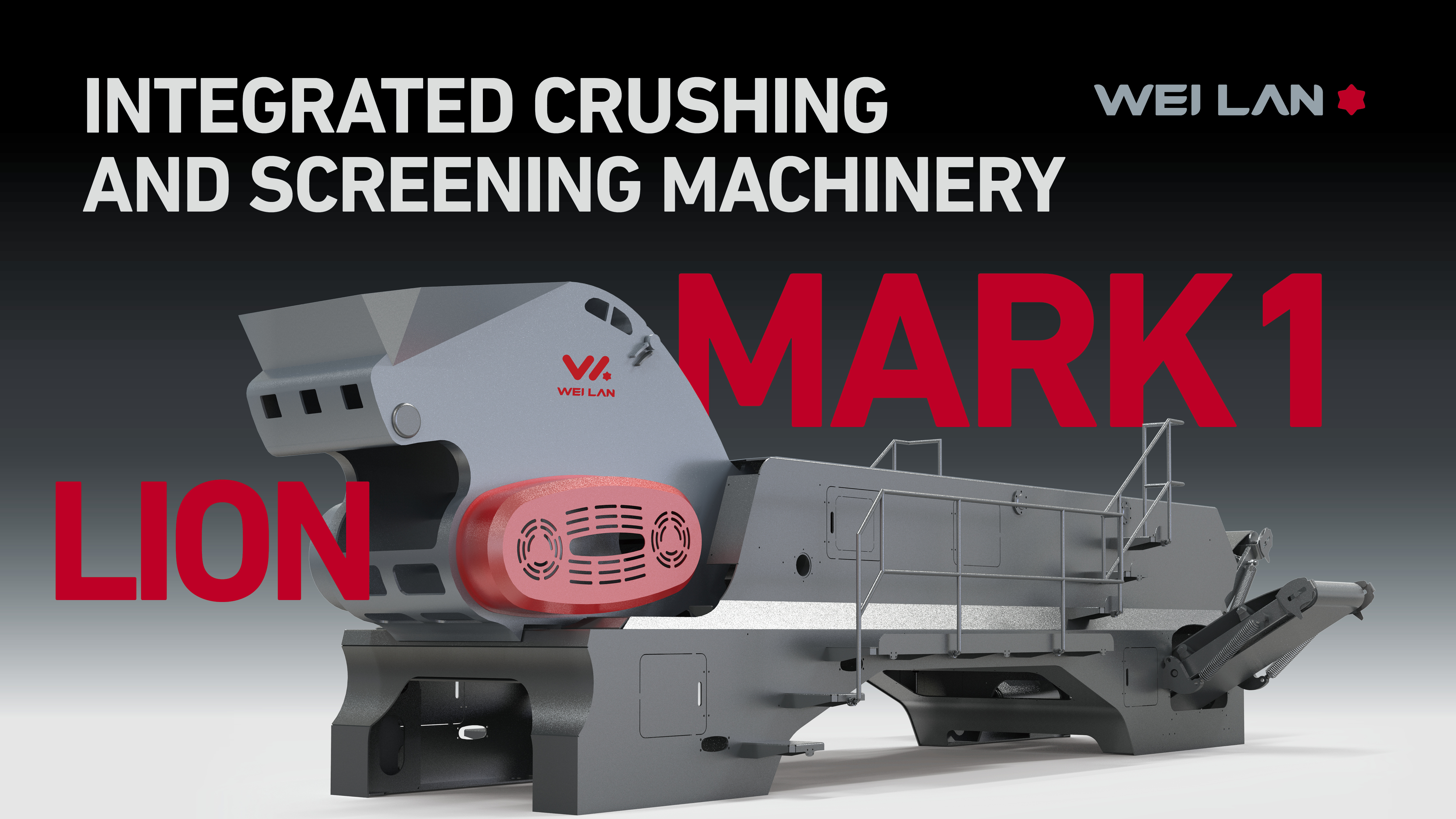

The Lion One integrated crushing and screening station combines feeding, crushing, screening, magnetic separation, air separation, and baling equipment for recyclable aggregates and light materials.
Engineering Advantages
Factory-prefabricated modules simplify lifting, commissioning, transport, and maintenance while shortening project delivery cycles.
Large-model data capabilities, optical capture, robotic sorting, PLC control, and DCS integration support stable automated operation.
Video monitoring, equipment status, alerts, carbon indicators, throughput, cumulative weight, and reports are unified in one visual platform.
Enclosed equipment structures reduce noise and dust exposure while presenting a clean, high-end equipment image for modern facilities.
Process Integration

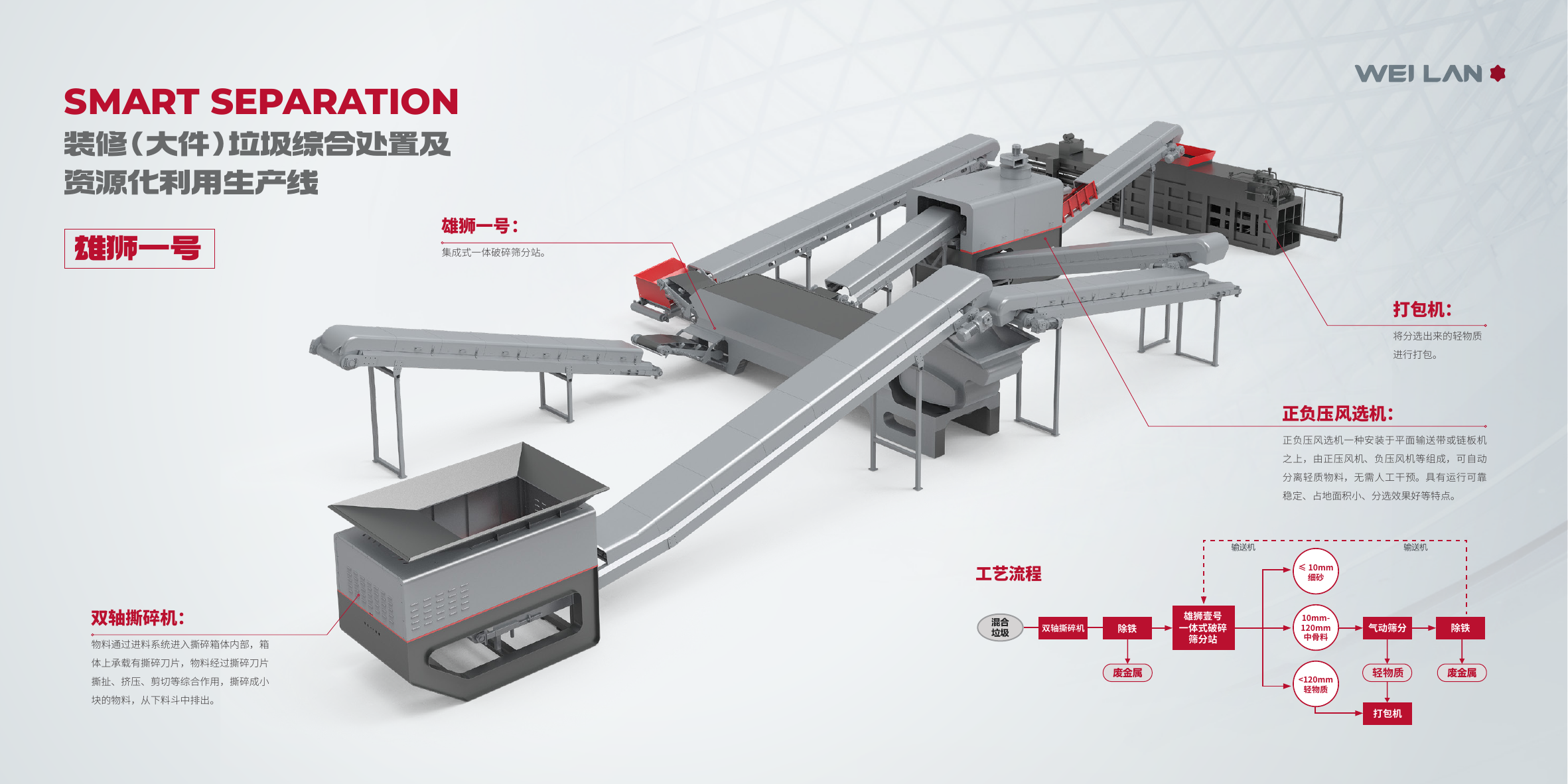

The product architecture covers preprocessing, counting and pricing, crushing, screening, magnetic separation, positive-negative pressure air separation, intelligent storage, optical sorting, baling, weighing, and remote control.

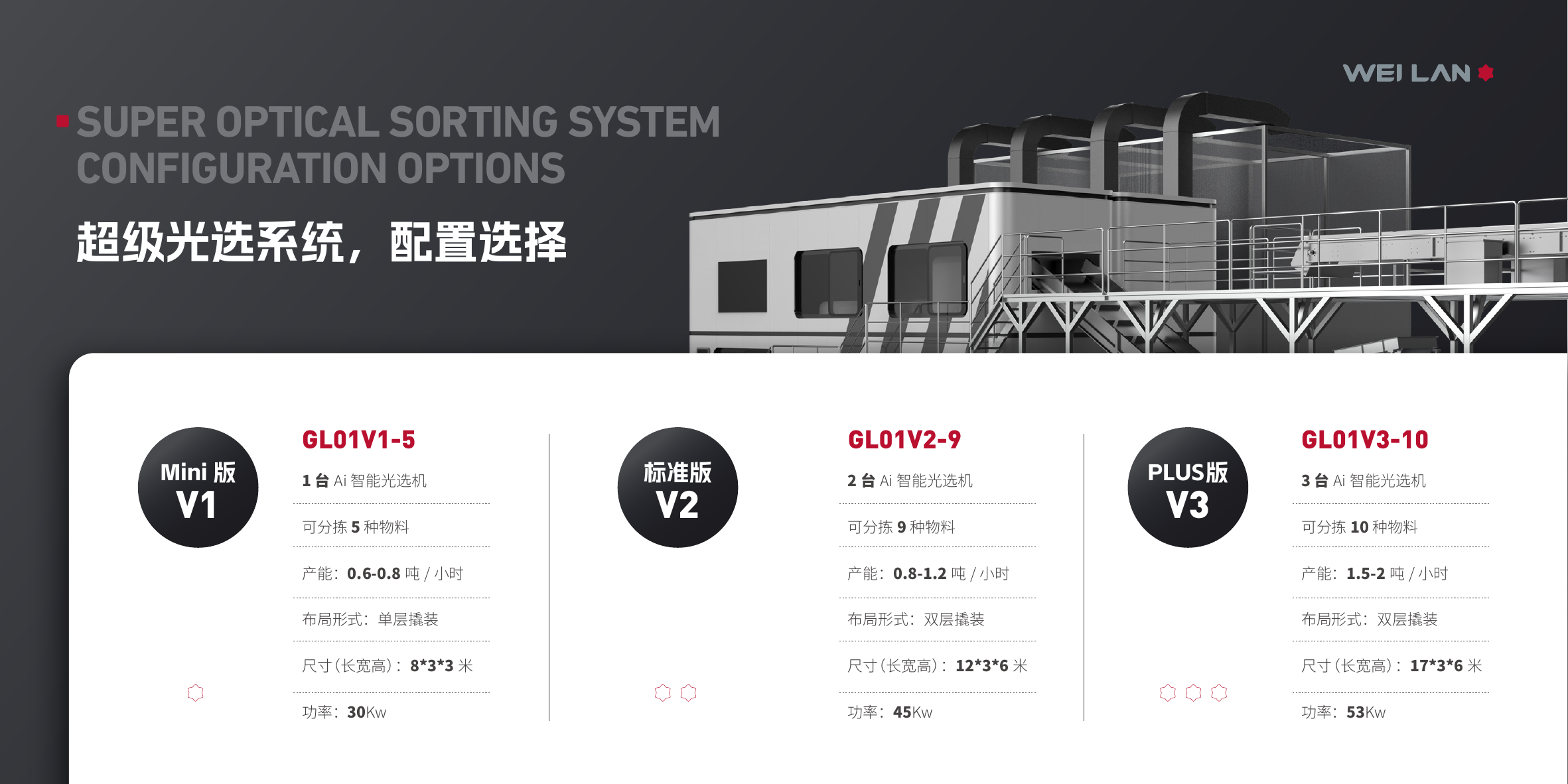

Specifications
| System | Configuration | Capacity | Sorting / Process Scope | Footprint / Size | Power / Drive |
|---|---|---|---|---|---|
| Super Optical Sorting | GL01V1-5 Mini | 0.6-0.8 t/h | 5 material types | 8 x 3 x 3 m | 30 kW |
| Super Optical Sorting | GL01V2-9 Standard | 0.8-1.2 t/h | 9 material types | 12 x 3 x 6 m | 45 kW |
| Super Optical Sorting | GL01V3-10 Plus | 1.5-2 t/h | 10 material types | 17 x 3 x 6 m | 53 kW |
| Construction Waste Line | Lion One integrated station | 50-170 t/h | Crushing, screening, magnetic separation, air separation, baling | 35 m2, 11.7 x 3 x 3.1 m | Full hydraulic drive |
Applications
Separate PET transparent bottles, green bottles, blue bottles, mixed-color bottles, HDPE white materials, PP, and other mixed materials.
Process construction waste, decoration waste, demolition waste, bulky waste, sand, aggregates, light materials, metals, wood, plastics, and textiles.
Connect sorting equipment with IoT monitoring, automated weighing, inventory analysis, operating reports, and remote production control.
Project Consultation
For accurate overseas project recommendations, share material composition, hourly capacity target, available plant area, destination country, voltage, and required automation level.
